How to Avoid Defects in Complex Injection Molding Tooling

Injection molding is a complex process that requires high precision and accuracy to produce quality parts. Defects in injection molding tooling can lead to significant financial losses, product recalls, and damage to a company’s reputation. This article will explore the common defects in injection molding tooling and provide practical solutions to avoid them.

Injection Molding Tooling: An OverviewCommon defects in injection molding toolingSolutions to avoid defectsConclusion

Injection Molding Tooling: An Overview

Injection molding is a manufacturing process used to produce parts in large volumes. The process involves injecting molten material, typically plastic, into a mold cavity, which is then cooled and solidified to form the desired part. Injection molding tooling refers to the molds and associated equipment used in the injection molding process.

Injection molding tooling is critical to the success of the injection molding process. The quality of the tooling directly affects the quality of the parts produced, as well as the efficiency and cost-effectiveness of the process. Proper design, construction, and maintenance of injection molding tooling are essential to ensure consistent and high-quality parts.

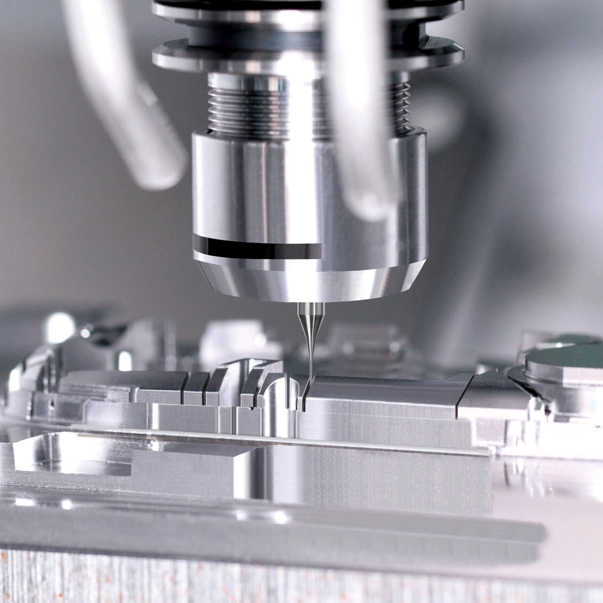

Injection molding tooling typically consists of a mold base, mold cavities, and other components such as ejectors, cooling lines, and heating elements. The mold base provides a framework for the mold cavities and other components, while the mold cavities determine the shape and size of the parts produced.

The injection molding process involves several steps, including material preparation, injection, cooling, ejection, and finishing. Each step is critical to the success of the process and requires careful attention to detail and quality control.

Injection molding tooling is used in a wide range of industries, including automotive, aerospace, consumer goods, and medical devices. The demand for high-quality and cost-effective parts continues to drive advancements in injection molding tooling design and technology.

Common defects in injection molding tooling

Injection molding is a widely used manufacturing process for producing high-quality plastic parts. However, defects can occur during the process, leading to defective parts and costly rework or scrap. Common defects in injection molding tooling include flash, short shots, warping, sink marks, and surface defects.

Flash is a defect that occurs when excess material escapes from the mold cavity, creating thin fins or webbing on the part’s surface. Flash can occur due to insufficient clamping force, improper mold alignment, or excessive material injection pressure. Flash can be removed by trimming or grinding, but it can also affect the part’s dimensions and appearance.

Short shots are defects that occur when the mold cavity is not completely filled with material, resulting in missing or incomplete features on the part. Short shots can occur due to insufficient material injection pressure, inadequate venting, or improper material flow. Short shots can be repaired by adding material or re-injecting the part, but they can also affect the part’s strength and functionality.

Warping is a defect that occurs when the part’s dimensions change after it is ejected from the mold, causing it to bend or twist. Warping can occur due to uneven cooling, residual stress, or material shrinkage.Warping can be minimized by optimizing the mold design, material selection, and process parameters, but it can also be difficult to detect and correct.

Sink marks are defects that occur when the part’s surface appears indented or recessed, usually on the thicker areas of the part. Sink marks can occur due to uneven cooling, material shrinkage, or insufficient packing pressure. Sink marks can be minimized by optimizing the mold design, material selection, and process parameters, but they can also affect the part’s appearance and performance.

Surface defects are defects that occur on the part’s surface, such as blemishes, scratches, or discoloration. Surface defects can occur due to improper mold maintenance, contamination, or material degradation. Surface defects can be minimized by maintaining the mold’s cleanliness, inspecting the material’s quality, and controlling the process conditions, but they can also affect the part’s quality and durability.

Solutions to avoid defects

Injection molding is a widely used manufacturing process for producing plastic parts in high volumes. However, defects can occur during the process, leading to defective parts and costly rework or scrap. To avoid defects in injection molding, it is essential to optimize the mold design, material selection, and process parameters.

Mold design

Mold design is a critical factor in avoiding defects in injection molding. A well-designed mold can ensure uniform material flow, proper cooling, and accurate part dimensions. Some key considerations for mold design include:

Mold flow analysis: Mold flow analysis is a computer simulation tool that helps predict material flow behavior during the injection molding process. It can identify potential defects such as short shots, flash, and warping, allowing designers to optimize the mold design before fabrication.

Cooling system design: Proper cooling is essential for achieving consistent part dimensions and avoiding defects such as warping and sink marks. The cooling system should be designed to provide uniform cooling throughout the mold, with strategically placed cooling channels and temperature control sensors.

Ventilation design: Ventilation is necessary to allow air and gas to escape from the mold cavity during injection. Poor ventilation can lead to defects such as short shots, burn marks, and incomplete filling. The mold should have adequate venting channels and vents to prevent these defects.

Gate and runner design: Gates and runners are the channels through which material flows into the mold cavity. Proper gate and runner design can ensure uniform material flow, reduce pressure drop, and avoid defects such as weld lines and flow marks. Gates should be located in areas that will not affect the part’s appearance or functionality, and runners should be designed to minimize waste material.

Material selection

Material selection is another critical factor in avoiding defects in injection molding. The chosen material should have the appropriate properties for the intended application and be compatible with the mold design and process parameters. Some key considerations for material selection include:

Material properties: The material’s properties, such as viscosity, shrinkage, and thermal conductivity, can affect the injection molding process and the resulting part quality. It is essential to choose a material with the appropriate properties for the intended application and to optimize the process parameters accordingly.

Material compatibility: The chosen material should be compatible with the mold design and process parameters. For example, some materials may require special mold coatings or surface treatments to avoid adhesion or degradation.

Material testing: It is essential to test the chosen material to ensure it meets the required specifications and performance criteria. Material testing can include mechanical testing, thermal analysis, and chemical analysis to evaluate the material’s properties and compatibility.

Process parameters

Process parameters are the settings used during the injection molding process, such as injection pressure, temperature, and cycle time. Optimizing these parameters is crucial to avoiding defects and achieving consistent part quality. Some key considerations for process parameter optimization include:

Injection pressure and temperature: The injection pressure and temperature should be optimized to ensure proper material flow and filling of the mold cavity. Too low of a pressure or temperature can result in short shots, while too high can cause flash or overheating.

Cycle time: The cycle time is the time required to complete one injection molding cycle, including injection, cooling, and ejection. Optimizing the cycle time can improve productivity and reduce costs while ensuring consistent part quality.

Material temperature and viscosity: The material’s temperature and viscosity can affect its flow behavior and the resulting part quality. It is essential to optimize the material’s temperature and viscosity to ensure proper filling and avoid defects such as warping or sink marks.

Process monitoring and control: It is essential to monitor and control the injection molding process to ensure consistent part quality and avoid defects. This can include using sensors and data analysis tools to track process parameters and identify potential issues.

Conclusion

Injection molding is a complex process that requires careful attention to detail and quality control to avoid defects in tooling. By understanding the common defects that can occur and implementing practical solutions, manufacturers can produce high-quality parts that meet customer requirements and avoid costly rework and scrap.

In summary, the key to avoiding defects in injection molding tooling is to invest in high-quality molds, optimize the design and process parameters, and implement effective quality control measures. With these strategies in place, manufacturers can achieve consistent success in the injection molding process.
